Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switc
Overview
The LNK-IMC103G-SFP Series is an industrial-grade Gigabit Ethernet switch designed for robust
performance in harsh environments. It features three 10/100/1000BASE-T copper ports and one
100/1000BASE-X SFP fiber slot, offering flexible connectivity for both copper and fiber networks.
Packaged in a compact, IP40-rated rugged housing, this switch operates reliably in extreme
temperatures from -40°C to +75°C, making it ideal for industrial applications.
Supporting both half-duplex and full-duplex modes, the switch ensures efficient data transmission.
The SFP slot accommodates various fiber modules (single-mode/multi-mode, 1/2 core), enabling
long-distance or high-bandwidth connections as needed. With its plug-and-play simplicity and durable
design, the LNK-IMC103G-SFP is an excellent solution for integrating IP cameras, wireless access
points, and other network devices across remote or challenging environments.
Features
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation

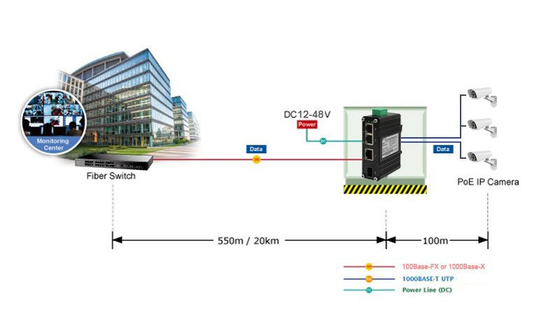

Application
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX |
| IEEE802.3ab 1000Base-T |
| IEEE802.3z 1000Base-X |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Processing Type: |
Store-and-Forward |
| Forward Filter Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: |
4 Mbit |
| Switch Fabric: |
12Gbps |
| Max Packet Length: |
9K Bytes |
| Address Table Size |
2K MAC Addresses |
| Interface |
| Connector: |
3 x RJ45 |
| Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical |
| Input Power: |
12~48VDC, 2-pin terminal block |
| Power Consumption: |
5W Max. |
| LED Indicators: |
| PWR: |
Power Status |
| L/A: |
Ethernet LINK Status |
| FX: |
Fiber LINK Status |
| Dimensions (WxDxH): |
95 x 70 x 30 mm |
| Weight: |
0.25Kg |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail / Wall-mount |
| Environmental |
| Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
| Model |
Description |
| LNK-IMC103G-SFP |
Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
