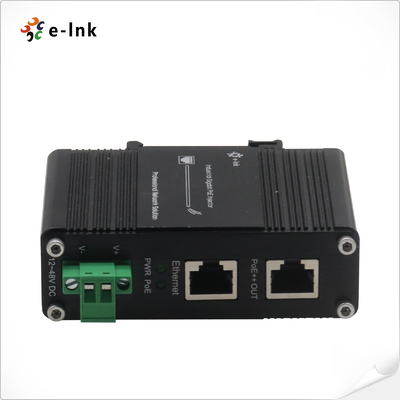

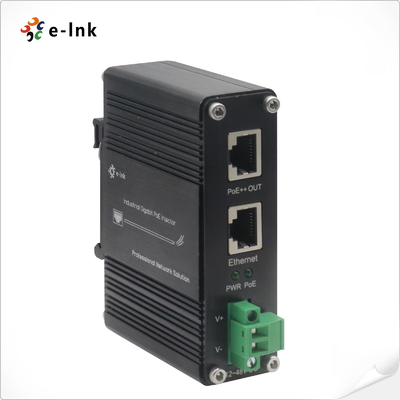

Industrial Gigabit PoE+ Injector IEEE 802.3bt 95W with Voltage Booster
Overview
The LNK-INJ-48-95W is an industrial-grade, single-port Gigabit PoE+ injector designed to
deliver up to 95W of power using IEEE 802.3bt / LTPoE++ standards. With a wide 12-48V
DC input and built-in voltage booster, it allows for seamless connection of PoE devices
such as cameras and access points to a non-PoE LAN switch within a 100-meter range.
Both the Ethernet port (for switch connection) and the PoE output port (for powering
devices) support 10/100/1000Base-T and comply with IEEE 802.3ab standards, ensuring
high-speed, reliable data and power transmission. This ruggedized injector is ideal for
industrial applications, providing robust performance even in demanding environments.
Features
1 RJ45 Ethernet data input port + 1 RJ45 PoE output port (Data + Power)
Supports 95W LTPoE++ Power Sourcing Equipment
Fully compliant with IEEE 802.3at/bt PoE end-span/mid-span PSE
Compatible with 10/100/1000Base-TX Ethernet speeds
Includes multiple LED indicators for PoE status monitoring
12-48V DC wide input range with built-in power booster function
Delivers up to 95W PoE output at 48VDC, 95W at 24VDC, and 60W at 12VDC
Supports both DIN rail and wall-mount installation options
Built for extreme conditions with an operating temperature range of -40°C to 80°C
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10 BASE-T Ethernet
IEEE802.3u 100 BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3 x Flow Control
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,000pps (1000Mbps)
|
|
Cabling:
|
Twisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A
1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
|
|
Maximum Distance:
|
Cat5 UTP up to 100m
|
|
Connector:
|
2x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
100W Max.
|
|
Power over Ethernet:
|
|
Standard:
|
IEEE 802.3bt 4-pair Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
Data provide over pairs 1,2TX and 3,6RX
Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
|
|
PoE Budget:
|
Up to 95-watt PoE budget (48VDC)
Up to 95-watt PoE budget (24VDC)
Up to 60-watt PoE budget (12VDC)
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
IP40 Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Standard Accessories
|
|
Package Contents
|
LNK-INJ-48-95W
|
|
User's manual
|
|
Wall-mount kit
|
|
DIN-mount kit
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Ordering Information
|
Model
|
Description
|
|
LNK-INJ-48-95W
|
Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector
with 12~48V DC wide range power input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
|
|
|
► Power Supply is to be purchased separately.
|
