64Ch POTS(FXO/FXS)Telephone over Fiber Mux
64Ch POTS Telephone over Fiber Overview

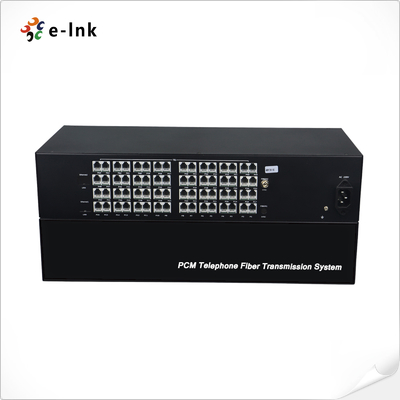

The E-Link 64-Channel POTS-to-Fibre Converter is a high-density solution for modernising legacy
telephone infrastructure. This powerful extender can transmit up to 64 traditional analogue phone lines
(POTS/PSTN) over a single fibre optic cable, enabling long-distance communication with crystal-clear voice quality.
The system comprises two units: an FXO unit for connecting to central office (PSTN) or PBX station lines,
and an FXS unit for connecting to standard analogue telephone devices. Key features include robust ring
voltage detection, superior signal integrity and standard RJ11 connectors for seamless integration
with existing copper-based equipment. This converter is the perfect future-proof solution
for telecoms operators, enterprises and campuses looking to leverage the reliability
and capacity of fibre while preserving their investment in analogue phones and fax machines.
64Ch POTS Telephone over Fiber Features
► Standard RJ11 telephone interface for easy connectivity
► Supports up to 64 voice channels with Caller ID and fax compatibility
► Dual voice ports: O port for switch connection, S port for user telephone
► Compatible with FXO/FXS ordinary telephones
► Supports point-to-point, cascaded, and distributed network connections with no SNR degradation
► Fiber optic power link with LED indicators for real-time system health monitoring
► Industrial-grade modular design ensures flexible configuration and reliable performance
64Ch POTS Telephone over Fiber Technical Indexes
|
Product Name
|
64 channel telephone over fiber converter
|
|
Product Model
|
LNK-PCM64 Series
|
|
Description
|
FXO/FXS Ordinary telephone
|
|
Telephone Ports
|
64 telephone port RJ11 port
|
|
Switch Terminal
|
Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN
|
|
FXS
|
Ringing voltage: 75V, ringing frequency: 25HZ
|
|
FXO
|
Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V
|
|
Ring detection frequency
|
17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db
|
|
Broadband Voice
|
8KHZ
|
|
Connection
|
Point to point,
telephone to telephone,
telephone to switch
|
|
Code
|
PCM code
|
|
Fiber Ports
|
FC/UPC
|
|
Ethernet Ports (optional)
|
Interface rate: 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)
MAC Address Capability: 4096
Connector: RJ45, support Auto-MDIX
|
|
Transmission distance
|
Single-mode single fiber 20KM
|
|
Environmental Specifications
|
Operating Temperature: -35°～ 75°C
|
|
Storage Temperature: -40°～ 45°C
|
|
Operating Humidity: 0%～95%, non-condensing
|
|
Total power consumption
|
3w
|
|
Power supply
|
Built-in power supply,
Input:AC110-240V 50/60Hz,
|
64Ch POTS Telephone over Fiber Dimensions
64Ch POTS Telephone over Fiber Ordering Information
|
Model
|
Description
|
|
LNK-PCM64
|
Analog Telephone to F/O Converter: 64-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, AC110-240V, used by pairs
|
64Ch POTS Telephone over Fiber Application
