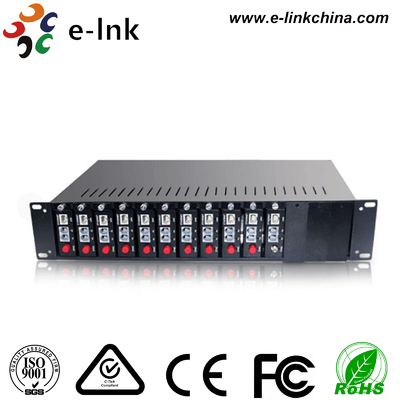

14-slots 2U Telephone Fiber Mux Rack
2U Telephone Fiber Mux Rack Overview
The LNK-PR14 is a highly reliable and cost-effective 2U chassis designed for centralized telecommunications
infrastructure. This modular rack system provides a flexible and scalable platform by housing up to 14 slots
for various module-type telephone fiber multiplexers (MUXs). Engineered for continuous operation in equipment
rooms, its standout feature is the integrated dual redundant power supply system. This system ensures zero
downtime by automatically switching to the backup power unit in case of a main power failure, guaranteeing
unparalleled service continuity and network stability for your critical voice and data links.
2U Telephone Fiber Mux Rack Features
► Active/standby dual power supply configuration ensures continuous and reliable system operation
► Supports AC 220V or DC -48V dual power input for flexible deployment in various environments
► Compatible with multiple module-type media converters operating at different rates,
enhancing system adaptability
► Hot-swappable design for easy maintenance and minimal downtime
► Supports application modules including LNK-PCM01 (1-Channel Telephone Fiber Mux)
and LNK-PCM02 (2-Channel Telephone Fiber Mux) series
2U Telephone Fiber Mux Rack Technical Indexes
|
Parameter
|
Specifications
|
|
Number of slots
|
14
|
|
Structure
|
2U rack
|
|
Dimension
|
90mm (H) x 485mm (W) x 230mm (D)
|
|
Power input
|
AC Voltage: AC 85~265V; frequency: 50/60 Hz
|
|
|
DC voltage: DC 36~72V
|
|
Power output
|
DC12V 10A
|
|
Ripple
|
≤20 mv
|
|
Power configuration
|
dual power supply for warm backup mode
|
|
LED indication
|
POWER (power supply)
|
|
Max power consumption
|
120W
|
|
Operating temperature
|
-10~55ºC
|
|
Operating humidity
|
5%~90%
|
|
Maintaining temperature
|
-40~70ºC
|
|
Maintaining humidity
|
5% ~ 90% non-condensing
|
2U Telephone Fiber Mux Rack Ordering Information
|
Model
|
Description
|
|
LNK-PR14-2A
|
14-slot, dual power supply-AC220V-19''2U- black-for 1Ch or 2Ch telephone fiber mux standalone
|
2U Telephone Fiber Mux Rack Application
