2G + 24SFP Management Gigabit Fiber Switch
2G + 24SFP Management Gigabit Fiber Switch Overview

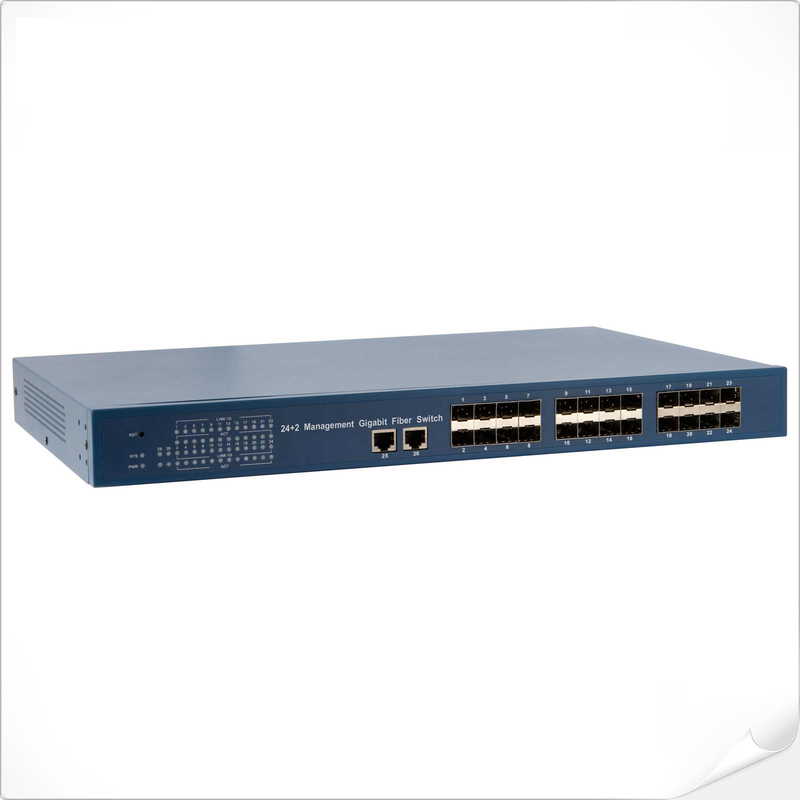

The LNK-FS242 is a high-performance Layer 2/Layer 4 managed gigabit fibre switch designed for
robust and secure network aggregation. It features 24 1000 Mbps SFP optical ports for flexible fibre
connectivity and 2x 10/100/1000 Mbps RJ45 ports for copper uplinks. It supports hardware-based wire-speed
switching for non-blocking performance. The switch offers comprehensive management via an intuitive
web interface, allowing advanced features to be easily configured. Built for security, it features an integrated
ARP and DOS defence system to mitigate virus attacks and network threats. With powerful tools including
QoS, Spanning Tree Protocol (STP), storm suppression, bandwidth control, IGMP snooping, access
control lists (ACLs) and DHCP snooping, the LNK-FS242 is an ideal, reliable solution for small and
medium-sized enterprises, campus networks and metropolitan area networks (MANs).
Unmanaged 24-Port SC Fiber Switch Features
►802.1x authentication support for secure user access control
►Wire-speed forwarding with non-blocking switching architecture for maximum performance
►Advanced port management functions, including port mirroring, port aggregation, and port speed limiting
►Flexible VLAN support, including port-based VLAN and IEEE 802.1Q VLAN tagging
►Storm control for broadcast, multicast, and unknown unicast (DLF) traffic to ensure network stability
►Spanning Tree Protocol (STP) support: IEEE 802.1d, IEEE 802.1w (Rapid STP), and IEEE 802.1s (Multiple STP)
for loop prevention and reliable network redundancy
Unmanaged 24-Port SC Fiber Switch Technical Indexes
|
Product Type
|
24SFP Management gigabit fiber network switches
|
|
Support agreement
|
IEEE802.3, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
|
|
Maximum frame length
|
9216B
|
|
Ports
|
24 1000M SFP optical ports + 2 Gigabit Rj45
|
|
Network Media
|
1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
|
|
1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
|
|
VLAN Address Table
|
4K
|
|
MAC address table
|
8K
|
|
Cache
|
32Mbits
|
|
Backplane bandwidth
|
48Gbit
|
|
Filtering and forwarding rate
|
1000Mbps:1488000pps
|
|
Dimensions
|
440x230x44mm (1U19-inch standard chassis)
|
|
Use of the environment
|
Operating Temperature: 0℃～40℃;
|
|
Humidity 10% ~ 90% non-condensing
|
|
Storage temperature: -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing
|
|
Power
|
Input :90-264VAC ,50-60HZ; output: 5V/12A
|
|
Power consumption
|
Power consumption: 60W
|
Unmanaged 24-Port SC Fiber Switch Ordering Information
|
Item
|
Description
|
|
LNK-FS242
|
24SFP + 2xRJ45 Management Gigabit Fiber Switch
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
