E-link 4-in-1 Video Fiber Converter AHD CVI TVI CVBS 120km Transmission

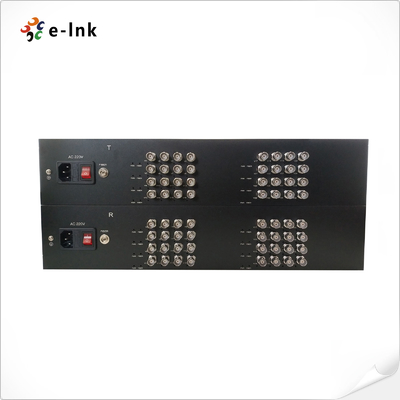

32Ch HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fiber Converter

32Ch 4-in-1 Video Fiber Converter Overview

The E-Link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fibre Converter is a versatile,

high-performance solution for transmitting high-definition video over long distances. Using

advanced uncompressed HD composite video and high-speed digital optical transmission

technologies, it can convert AHD, HD-CVI, HD-TVI or CVBS analogue signals into optical signals

for transmission over a single single-mode or multimode fibre. This achieves exceptional distances of

up to 120 km. This 32-channel transceiver can transmit up to 16 channels of video simultaneously,

eliminating the need for complex electronic or optical adjustments. With intuitive LED status indicators

for instant monitoring, it is available in standalone and rack-mount versions to suit any environment.

With support for various input formats, including 720p at 60 fps and 1080p at 30 fps, it is the ideal

plug-and-play solution for modern high-definition surveillance systems requiring

reliable long-range fibre optic connectivity.

32Ch 4-in-1 Video Fiber Converter  Features

• Non-compression coding technology ensures high-quality, real-time video transmission

• Auto-detection of input video formats for seamless compatibility

• Supports multi-format video signals (AHD, HDCVI, HD-TVI, CVBS) with simultaneous PTZ control via RS485 over a single fiber optic cable

• Compatible with multiple resolutions, including 720p/50, 720p/60, 1080p/25, 1080p/30, and more

• LED indicators provide clear status monitoring of operational modes

• Industrial-grade wide temperature tolerance: -15ºC to +65ºC, suitable for harsh environments

• Plug-and-play design for fast and easy installation

32Ch 4-in-1 Video Fiber Converter Technical Indexes

32Ch 4-in-1 Video Fiber Converter Ordering Information

32Ch 4-in-1 Video Fiber Converter Application

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
