Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
Industrial Managed 8-Port Ethernet Switch Overview

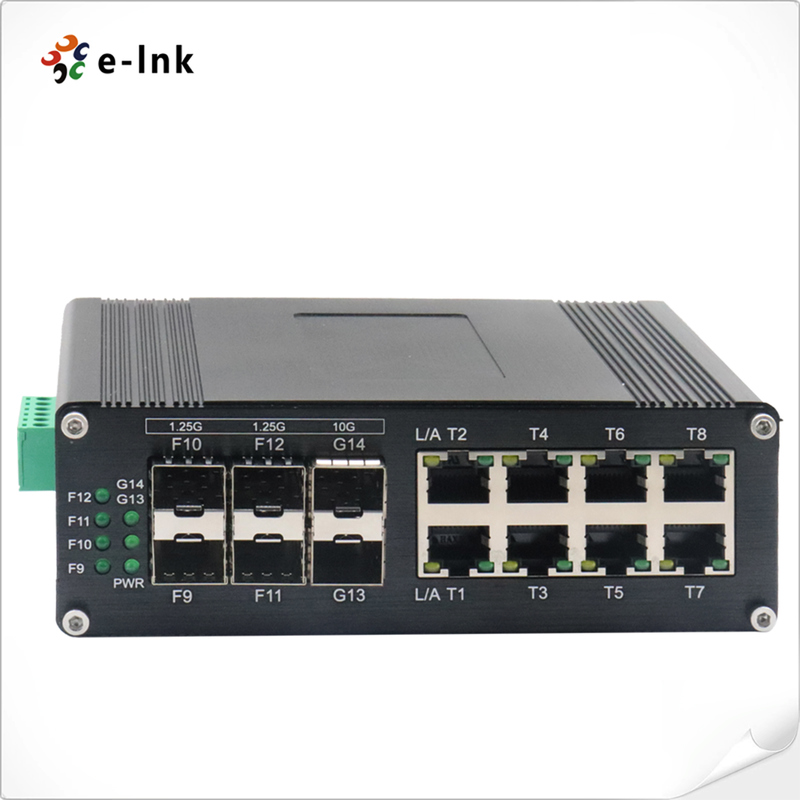

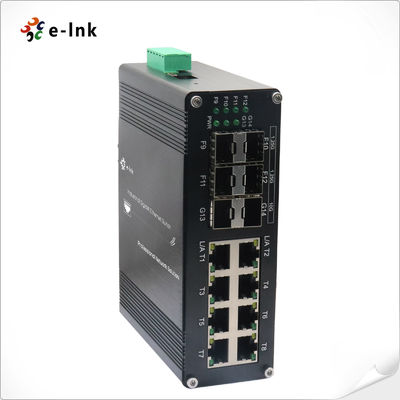

The ETH-IMC2408M Series is a ruggedized managed Ethernet switch featuring 8× 10/100/1000Base-T copper ports, 4× 1000Base-X SFP fiber slots, and 2× 10G SFP+ fiber slots.
It supports flexible connectivity with auto-negotiating RJ45 ports and dual-rate fiber interfaces for both single-mode and multi-mode transceivers.
Designed for harsh environments, this switch reliably integrates diverse network equipment—such as IP cameras and wireless access points—across distributed sites, offering robust performance and simplified management.
Industrial Managed 8-Port Ethernet Switch Features
- High-Density Port Configuration: Equipped with 8x 10/100/1000Base-T RJ45 ports, 4x 1G SFP slots, and 2x 10G SFP+ slots for versatile and scalable connectivity.
- Advanced RJ45 Port Features: Each 10/100/1000Mbps RJ45 port supports auto-negotiation, Auto MDI/MDIX, and full/half-duplex modes for simplified deployment and robust performance.
- Modern Management Interface: Features a USB-C port for convenient out-of-band management, eliminating the dependency on a traditional RS232 serial console.
- Enhanced Performance: Supports Jumbo Frames up to 9K bytes for improved data transfer efficiency and reduced CPU overhead.
- Energy Efficiency: Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), reducing power consumption during periods of low data activity.
- Durable Industrial Design: Housed in a rugged IP40-rated aluminum case capable of operating in a wide temperature range from -40°C to 80°C (-40°F to 176°F).
- Flexible Installation: Supports DIN-Rail mounting for easy integration into industrial control panels and network cabinets.
Industrial Managed 8-Port Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3ae 10GBase-R
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
1,488,000,000pps (10000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
9K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
2 x 10G Base-SR/LR SFP+
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
8W Max.(PoE in Use<240W)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
Gigabit SFP Port: F9~F12
|
|
10G SFP+ Port: F13, F14
|
|
Dimensions (WxDxH):
|
149 x 114 x 50 mm
|
|
Weight:
|
0.55Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial Managed 8-Port Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ETH-IMC2408M
|
Industrial L2+ 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
