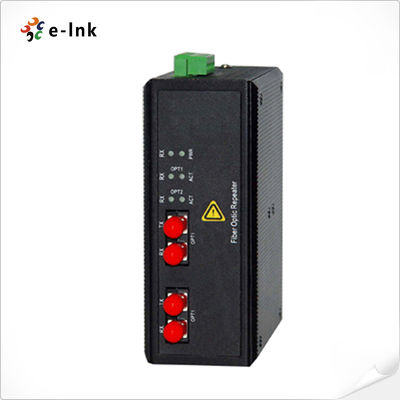

Fiber Media Converter DIN Rail Mount Wide Voltage 9V to 30VDC Redundant Input

Industrial 100M Multimode to Single Mode Fiber Media Converter

Industrial 100M Fiber Media Converter Overview

The LNK-IMC1010 Series represents a versatile industrial-grade media converter solution designed to enable seamless integration of both single-mode and multi-mode fiber optic infrastructures within Fast Ethernet networks. These robust converters efficiently bridge different fiber types by performing wavelength conversion across 850nm and 1310nm multi-mode signals as well as 1310nm and 1550nm single-mode transmissions, while supporting both duplex and simplex fiber port configurations.

Engineered for industrial field bus applications, the series delivers reliable 100Mbps data transmission with protocol-independent operation, ensuring compatibility with diverse industrial Ethernet protocols. The compact DIN-rail mountable design features redundant 9-30V DC power inputs with relay alarm output for system monitoring, providing enhanced reliability in automation, transportation, and utility communication networks where continuous operation is critical. This flexible media conversion platform eliminates fiber infrastructure compatibility barriers while maintaining signal integrity across extended distances in electrically noisy environments.

Industrial 100M Fiber Media Converter Features

• Standards Compliance - Fully compatible with IEEE 802.3u 100Base-FX Ethernet standards ensuring interoperability with existing network infrastructure
• Adaptive Duplex Operation - Supports both full-duplex and half-duplex communication modes with automatic detection and negotiation capabilities
• Multi-Wavelength Conversion - Enables seamless signal conversion between 850nm/1310nm multimode fibers and 1310nm/1550nm single-mode fibers
• Packet Transparency - Maintains complete data integrity with direct transparent transmission of variable-length packets without modification
• Extended Frame Support - Capable of processing and forwarding extra-long VLAN packets exceeding standard Ethernet frame sizes
• Traffic Prioritization - Implements Quality of Service (QoS) mechanisms to prioritize VoIP and real-time critical data transmission
• Energy Efficient Design - Features optimized power management with low thermal output for sustained reliability and extended operational lifespan
• Advanced Diagnostics - Integrated link status indicators and fault detection systems for simplified network monitoring and maintenance
• Wide Temperature Operation - Maintains stable performance across industrial temperature ranges without requiring active cooling

Industrial 100M Fiber Media Converter Technical Indexes

Industrial 100M Fiber Media Converter Ordering Information

Industrial 100M Fiber Media Converter Application

• Industrial Automation Networks - Provides reliable fiber optic connectivity for PLC systems, motor drives, and sensor networks in manufacturing facilities with IEEE 802.3u compliance and QoS-enabled data transmission
• Campus Network Expansion - Enables seamless integration of multi-building network segments using mixed fiber types while maintaining VLAN integrity and packet transparency
• Intelligent Transportation Systems - Supports traffic management cameras, variable message signs, and vehicle detection networks with extended temperature operation and redundant power inputs
• Utility Communication Networks - Facilitates SCADA and telemetry data transmission across power substations and water treatment facilities with protocol-independent fiber conversion
• Security and Surveillance Systems - Enables high-priority video transmission from IP cameras to control centers with QoS ensuring real-time video stream integrity
• Telecommunications Access Networks - Provides last-mile fiber connectivity solutions with wavelength conversion capabilities for service provider infrastructure

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service,

providing product consultation, remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure

by technicians and man-made damage caused by non-natural disasters, the purchaser can directly

go to the purchasing point to replace the same type of products.Or a product of comparable performance.

If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
