Industrial SFP Media Converter EN55022 Certified Hardened Design for Harsh Environments

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Ethernet Media Converter

Mini Industrial Ethernet Media Converter Overview

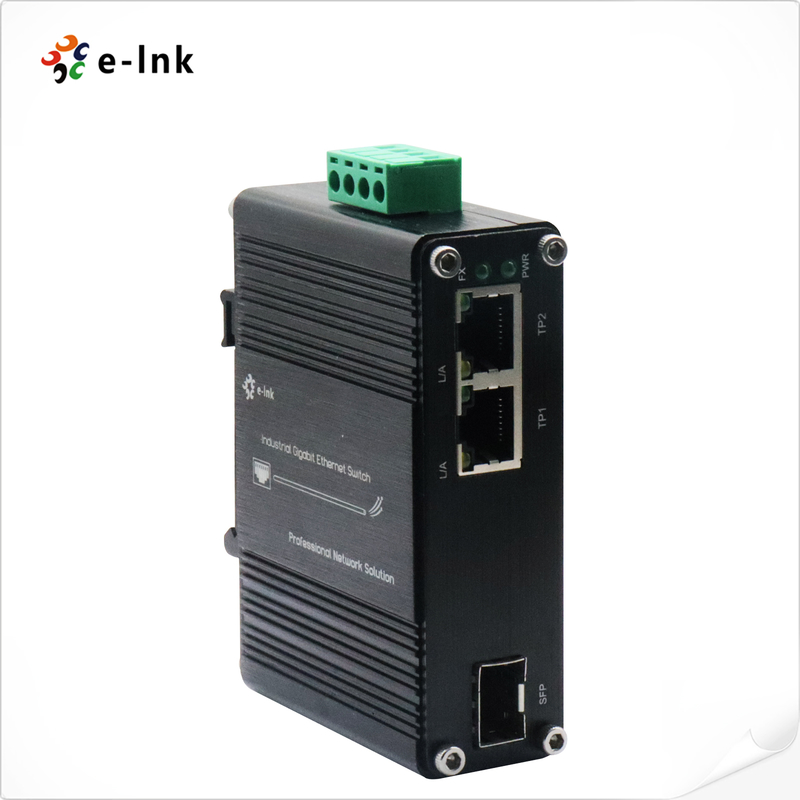

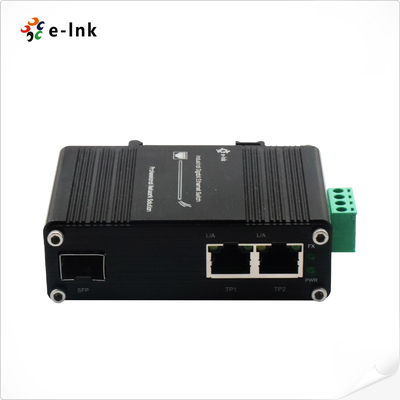

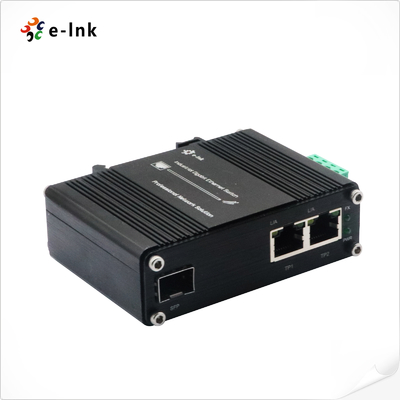

The LNK-IMC1200G-SFP Series Industrial DIN Rail Gigabit Media Converter is a reliable solution

for extending Ethernet over fiber in harsh environments. This hardened media converter has been designed

with a rugged enclosure and is compliant with EN55022 standards. It is able to operate in extreme temperatures

ranging from -40°C to +75°C, making it ideal for industrial automation, transportation and outdoor applications.

This Gigabit media converter is equipped with 10/100/1000Base-T copper ports and 100/1000Base-X SFP slots,

providing users with a range of flexible fibre options. These options include external SFP modules for single-mode

or multi-mode fibre(1 or 2-core) offering enhanced versatility. The Ethernet port supports full-duplex

and half-duplex modes for seamless connectivity and high-speed data transmission.

The LNK-IMC1200G-SFP is designed for straightforward installation and reliable performance

in critical networks, thanks to its DIN rail mounting and wide power input compatibility. This product is ideal

for extending network distances of up to 120 km when used with the appropriate SFP modules.

 Mini Industrial Ethernet Media Converter Features

LNK-IMC1200G-SFP Series present the following characteristics:

• Dual Gigabit Ethernet Ports – 2× 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X for easy device connectivity.
• Flexible Fiber Connectivity – 1× SFP slot supporting 100Base-FX or 1000Base-X (auto detection) for long-distance fiber transmission.
• Advanced Network Performance – Supports Full/Half-duplex and Auto-negotiation for optimized data flow.
• Energy Efficient Design – Compliant with IEEE 802.3az Energy-Efficient Ethernet (EEE) for reduced power consumption.
• Wide Power Input – Operates on 12~48VDC via Terminal Block for flexible industrial power environments.

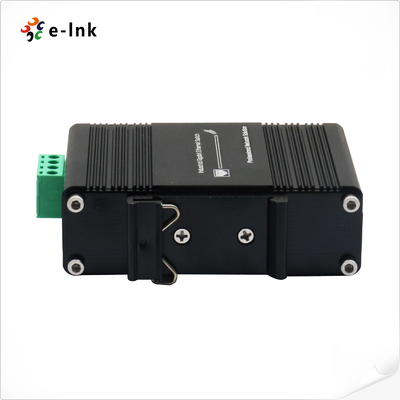

• Versatile Mounting Options – DIN-Rail and Wall-Mount installation for easy integration in control cabinets or panels.
• Industrial-Grade Reliability – Hardened design with -40°C to +75°C (-40°F to +167°F) operating temperature for harsh environments.

Mini Industrial Ethernet Media Converter Technical Indexes

Mini Industrial Ethernet Media Converter Ordering Information
