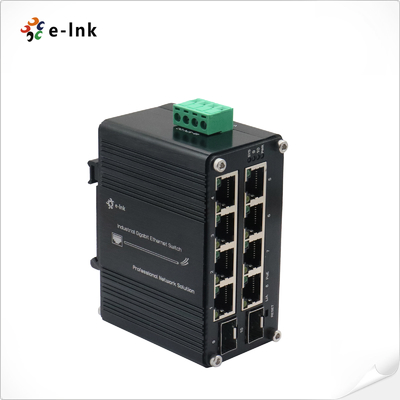

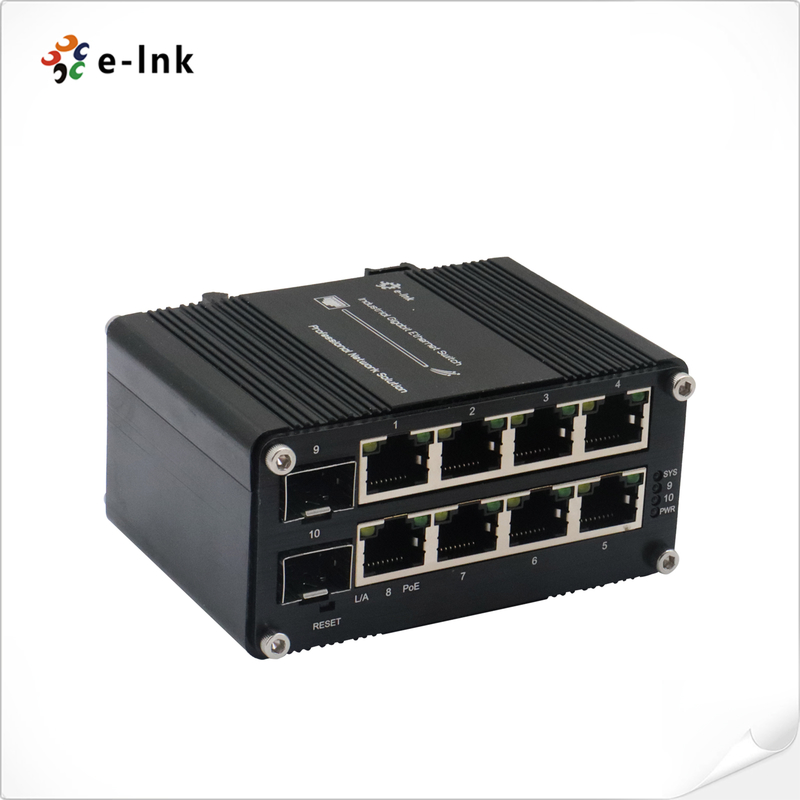

Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
Overview
The LNK-IMC208SGP-SFP is a managed industrial network switch designed for robust and versatile
connectivity in demanding environments. It features 8 10/100/1000Base-TX ports with PoE+ support
(compliant with IEEE 802.3at), enabling simultaneous power and data transmission over standard
RJ-45 cables to power devices like IP cameras and wireless access points. Additionally, it includes 2
SFP ports that support 100/1000Base-X fiber connectivity, compatible with both single-mode and
multi-mode fibers (1 or 2 core), facilitating long-distance links between remote locations. Its managed
capabilities offer advanced configuration options and monitoring tools, ensuring reliable network
performance and ease of integration. This switch is ideal for industrial applications requiring scalable,
resilient networks, particularly in scenarios where network devices need centralized power distribution
and high-speed fiber connectivity.
Features
► Supports 802.3x Flow Control
► Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
► Support IEEE 802.3D/W/S standard STP/RSTP protocol
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
► 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports WEB Management
► Supports IEEE 802.3at PoE+ (30W per port)

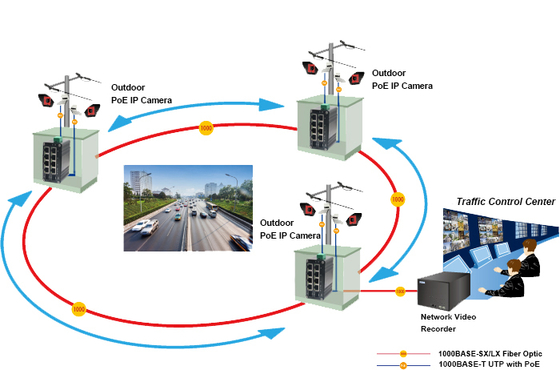

Application
Technical Indexes
| Ethernet |
| Standards: |
IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX |
| IEEE802.3ab 1000BASE-T |
| IEEE802.3z 1000BASE-X |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet |
| Forward & Filtering Rate: |
14,880pps (10Mbps) |
| 148,800pps (100Mbps) |
| 1,488,000pps (1000Mbps) |
| Backplane bandwidth |
20Gbps |
| Packet Buffer Memory: |
9216 bits |
| Processing Type: |
Store-and-Forward |
| Max Packet Length: |
9K Bytes Jumbo Frame |
| Address Table Size: |
4K MAC Addresses |
| Interface |
| Connector: |
8 x RJ45 |
| Optical Port: |
2 x 100/1000Base-X SFP |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet |
| Port: |
RJ45 |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Budget: |
Up to 240-watt PoE budget |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 200,000 hrs |
| Electrical and Mechanical |
| Input Power: |
48~57VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: |
5W Max.(PoE in Use<240W) |
| Protection: |
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| LED Indicators: |
| PWR: |
Power Status |
| Ethernet (Per Port): |
Link/Activity |
| PoE: |
PoE Status |
| Fiber: |
Gigabit SFP Port: F9~F10 |
| Dimensions (WxDxH): |
95 x 63 x 46 mm |
| Weight: |
300g |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail mount |
| Software Features |
| Redundancy Protocols |
Support STP/RSTP |
| Multicast Support |
Support IGMP Snooping V1/V2/V3 |
| VLAN |
Support IEEE 802.1Q 4K VLAN |
| QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance |
Support port mirroring, Syslog, Ping |
| Management Function |
WEB |
| Security |
Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model |
Description |
| LNK-IMC208SGP-SFP |
Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch |
| SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
