Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000BASE-X Ethernet Switch

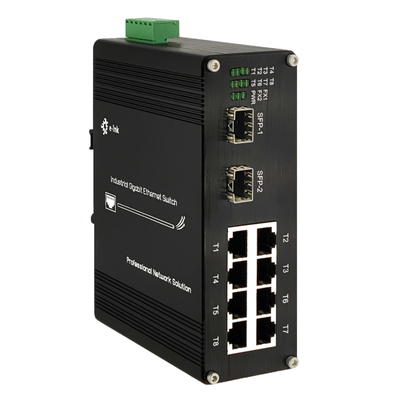

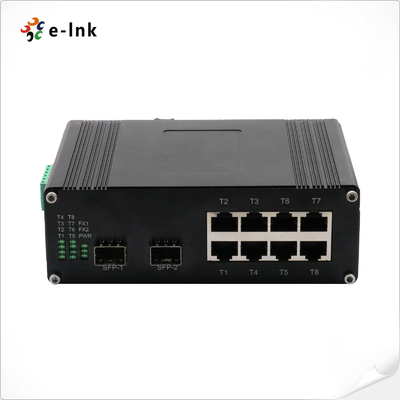

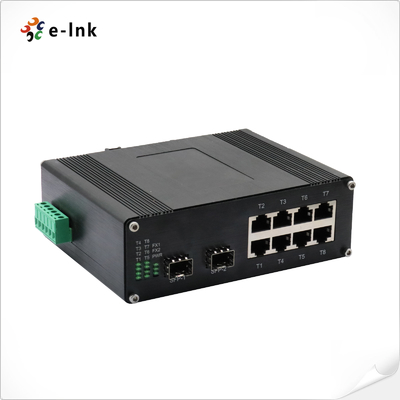

LNK-IMC208GP Industrial 8-Port Ethernet Switch Overview
The LNK-IMC208GP Series is an industrial-grade 8-port Gigabit Power over Ethernet switch
with two fibre ports, designed for use in harsh environments. The device features
8 x 10/100/1000Base-T PoE+ ports (30W per port, 240W total) and 2 x 100/1000Base-FX SFP slots,
delivering power and data over a single cable to IP cameras, wireless access points,
and other PD devices. The fibre ports support single/multi-mode SFP modules
for long-distance connectivity of up to 120km. This switch is ideal for industrial automation,
outdoor surveillance and smart transportation systems. It has an operating temperature
of -40°C to 75°C, an IP40 metal housing and DIN-rail mounting.
LNK-IMC208GP Industrial 8-Port Ethernet Switch Features
1. High-Performance Network Ports
- 8x 10/100/1000Base-TX RJ45 Ports
Auto-negotiation for speed (10/100/1000Mbps)
Auto MDI/MDIX (no crossover cables needed)
Full/half-duplex mode support
- 2x 100/1000Base-FX Fiber Ports
Supports SFP/SC/FC/ST connectors (single/multi-mode)
Hot-swappable SFP modules
2. Advanced PoE+ Power Delivery
- IEEE 802.3at PoE+ Support (30W per port, 240W total budget)
- Powers IP cameras, wireless APs, VoIP phones over single cable
- Auto-detection of PoE/PoE+ devices
3. Industrial-Grade Reliability
- Wide Temperature Range: -40°C to 80°C (-40°F to 176°F)
- Dual Power Inputs (12-48V DC) for redundancy
- DIN-Rail Mountable for secure industrial installation
- Metal IP40 Housing (dust-resistant, rugged)
4. Intelligent Network Features
- IEEE 802.3az Energy Efficient Ethernet (EEE) – Reduces power usage
- 802.3x Flow Control – Prevents data loss during congestion
- Jumbo Frame Support (9K bytes) for high-bandwidth data
5. Easy Deployment & Monitoring
- Plug-and-Play operation
- LED Indicators (power, link/activity, PoE status)
- Fanless Design – Silent operation, no moving parts
LNK-IMC208GP Industrial 8-Port Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
2.75M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
9K Bytes Jumbo Frame
|
|
Address Table Size:
|
4K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
253W Max. (PoE in use)
|
|
5W Max. (PoE not in use)
|
|
Standard:
|
IEEE802.3af/at
|
|
PoE:
|
|
Port:
|
RJ45 Port 1 ~ Port 8
|
|
Max. Power per Port:
|
30W Max per port
|
|
Power Pin Assignment
|
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
PoE:
|
Per Port Status
|
|
Ethernet(Per Port):
|
Link/Activity
|
|
Fiber:
|
FX1, FX2
|
|
Dimensions (WxDxH):
|
150 x 115 x 50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Aluminum Case
|
|

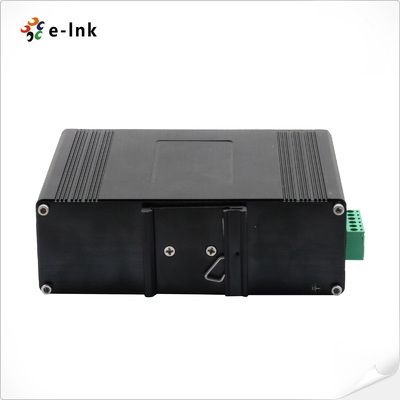

Mounting Options:
|
DIN-Rail mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
LNK-IMC208GP Industrial 8-Port Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC208GP
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
|
|
LNK-IMC208GP-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC208GPS-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC208GPF-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC208GP-SFP
|
Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed
|
|
Power Options
|
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
